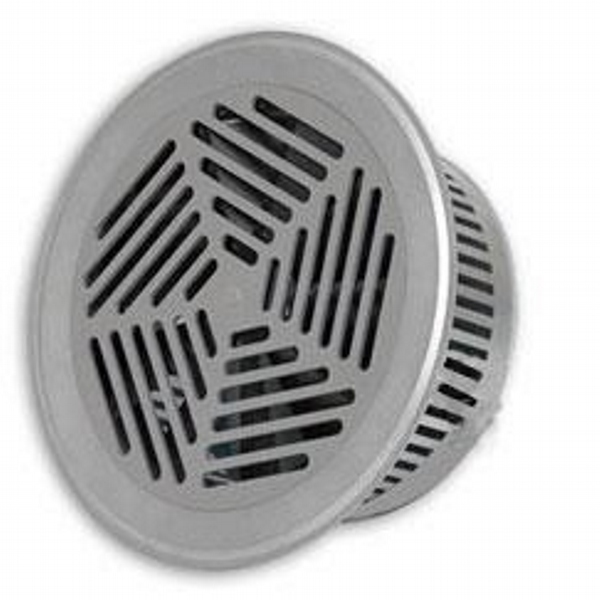

DTD - 22

Ceiling/Wall Type Diffuser - Air flow rates are adjusted to appropriate conditions at vents used in walls and ceilings higher than 3.5 m.

Technical information
346 Kb.

DTD - 03

Curved Fin Swirl Diffusers - DTD-03 Swirl diffusers can be manufactured with fixed or movable fins.

Technical information
1155 Kb.

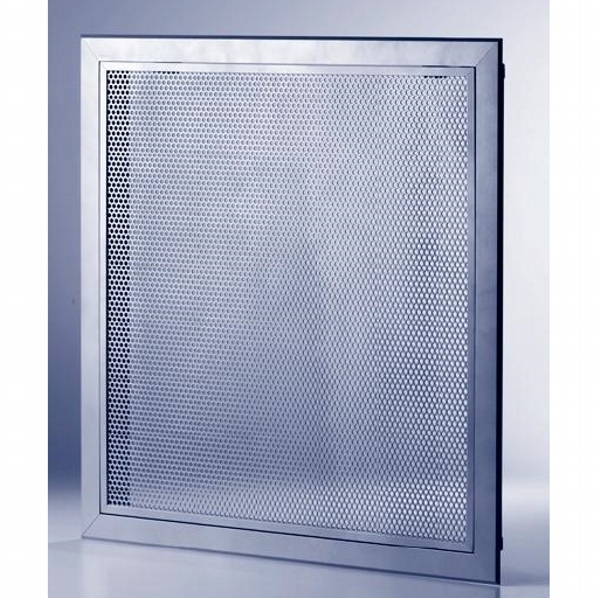

DTD–15

Perforated Diffuser - Appropriate for suction and blow on low ceilings. Can be preferred as an intervention cover for free suction thanks to its removable perforated front panel.

Technical information
475 Kb.

DTD-16

Perforated Diffuser - Used for blowing the filtrated or chilled air into the space without any turbulence in places like theaters, laboratories or cleaning rooms. Suitable for mounting onto the ceiling.

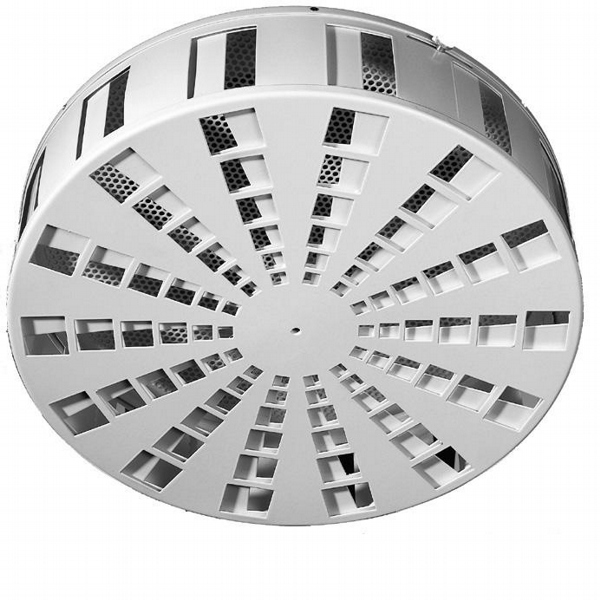

DTD - 11

Comfort Diffuser - Suitable for horizontal or vertical blows due to adjustable fins. Summer and winter modes can easily be adjusted for high ceilings.

Technical information
606 Kb.

DTD-14

Diffuser Plenum Box - Made of 0.6 mm galvanized sheet, these boxes can be manufactured with optional internal and external insulation. Box sleeve inlets can be with or without flaps, box interior can have perforated separators for uniform diffusion and sleeve control can be for internal or external control.

Technical information
450 Kb.

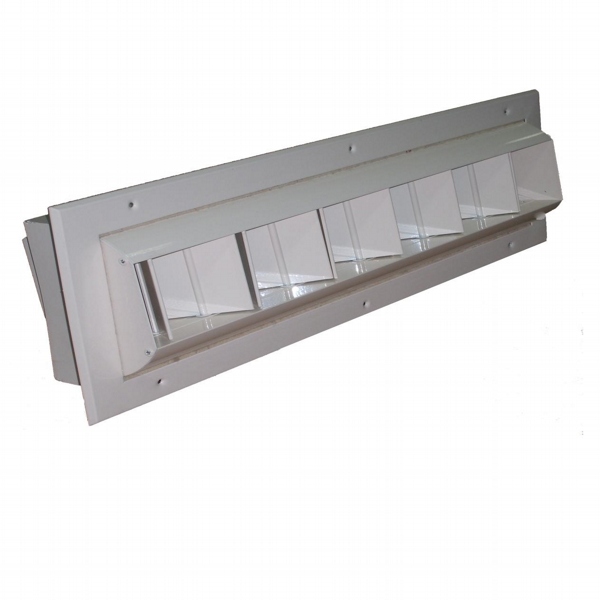

DTD - 13

Jet Diffuser - Suitable for horizontal or vertical blows due to adjustable fins. Summer and winter modes can easily be adjusted for high ceilings.

Technical information
3773 Kb.

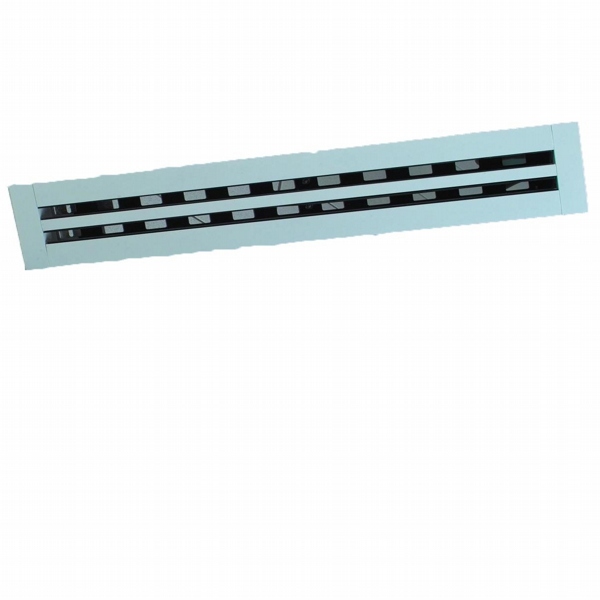

DTD - 09

Slot Diffuser - Suitable for horizontal or vertical blows due to adjustable fins. Suitable for use in places with ceiling heights of 2.6-4 m.

Technical information
347 Kb.

DTD - 10/A

Slot Diffuser - Suitable for horizontal or vertical blows due to adjustable fins. Suitable for use in places with ceiling heights of 2.6-4 m.

Technical information
306 Kb.

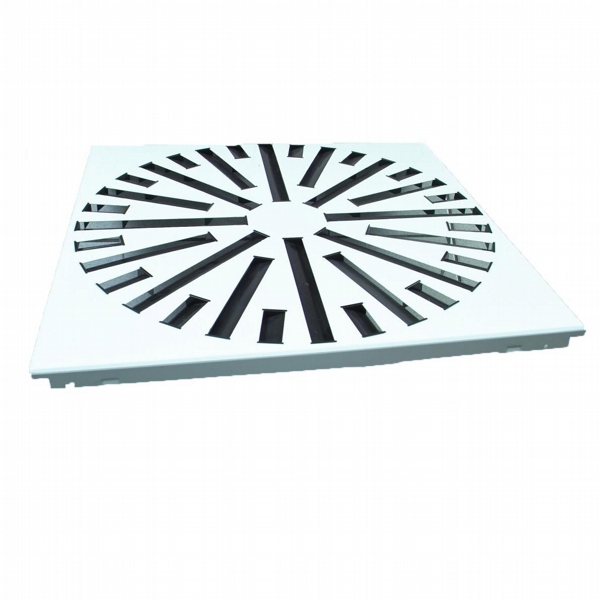

DTD - 02

Swirl Diffuser - DTD-02 Diffusers are suitable for horizontal or vertical blows due to adjustable fins. Suitable for use in places with ceiling heights of 2.6-4 m. Diffuser face can be square or round (optional).

Technical information
1132 Kb.

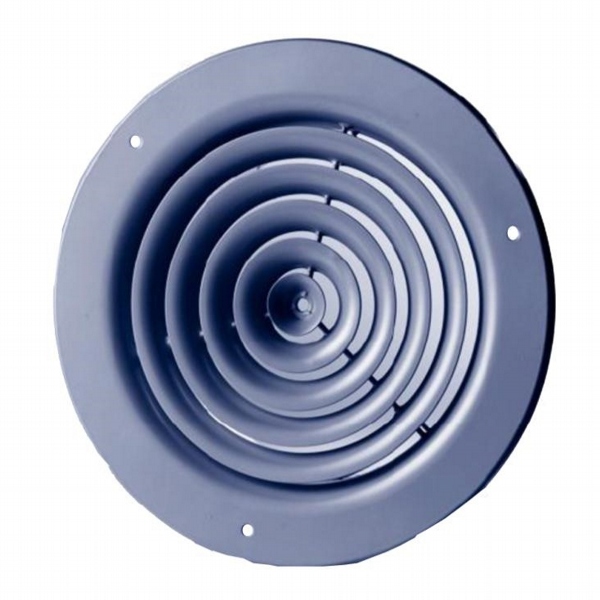

DTD - 06

Circular Diffuser - These diffusers are more suitable for horizontal blows due to fin structure. They should be mounted on the same platform with the ceiling to create coanda effect. Suitable for use in places with ceiling heights of 3.5-4 m.

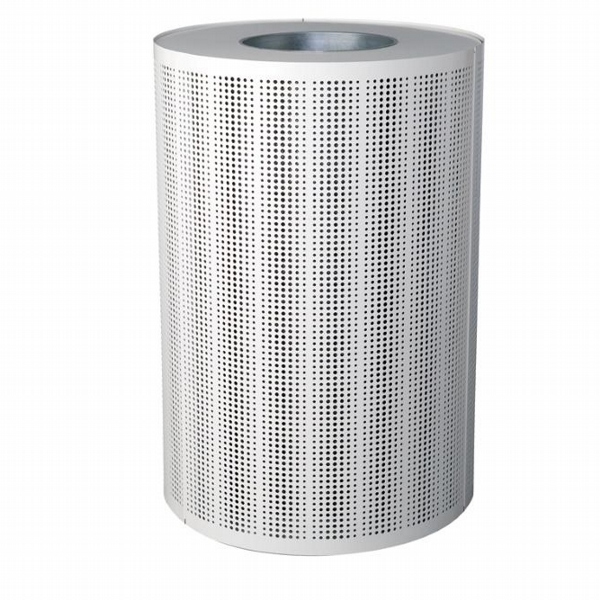

DTD - 21

Displacement Diffuser - Air speeds in vents used in ceilings and walls in spaces higher than 3.5 m are adjusted to appropriate conditions. With displacement diffusers, this implementation takes place to the contrary of the usual logic. Air speed is kept low and ventilation is provided in the place without causing any air turbulence.

Technical information
1671 Kb.
