Water proof or water-resistant describes objects relatively unaffected by water or resisting the ingress of water under specific conditions. In building construction a structure needs water proofing since concrete itself will not be watertight on its own but note concrete is easily waterproofed with additives etc. The conventional system of water proofing involves membrane that act as a barrier between water and the building structure preventing the passage of water.

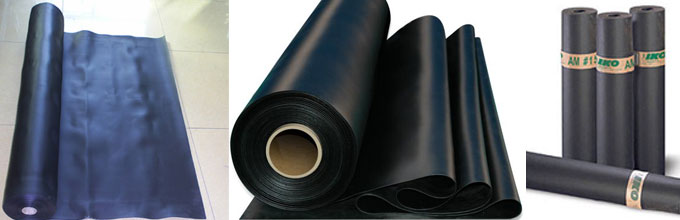

It is available in 1.2mm thickness and width is referred to the customer requirement up to 1.5 meter. Roll size is available up to 30 meters as per customer's specifications.
It is a single ply proofing membrane and as a liner for ponds and other structure.
The standards for water proofing bathrooms in domestic construction have improved over the years, due in large part to the general tightening of building codes.
ASTM C1127 standard guide for use of high solid content, cold liquid content, applied elastomeric waterproofing membrane with an integral wearing surface.
| Properties (Metric-SI Unit) | Specifications | Test Method |
|---|---|---|
| Tolerance on Nominal Thickness, % | ±10 | ASTM D 412 |
| Colour | Balck | Visual |
| Tensile Strength, min. (MPa) | 6.0 | ASTM D 412 |
| Elongation, Ultimate, min % | 250 | ASTM D 412 |
| Tear Resistance, min. (kN/m) | 25 | ASTM D-624(Die C) |
| Resistance to Heat Aging Properties after 4 weeks @ 115°C Tensile Strength, min. Mpa Elongation, ultimate, min.% Tear Resistance, min.(kN/m) Linear Dimensional Change, max.% |
5.0 175 20 ±2.0 |
ASTM D573 ASTM D412 ASTM D412 ASTM D624 ASTM D1204 |
| Ozone Resistance Condition after exposure to 100 pphm Ozone in air for 168 hours @40°C Specimen is @ 50% Strain |
No Cracks | ASTM D 1149 |
| Resistance to Water Absorption After 7 days immersion @70°C Change in mass. Max.% |
4.0 |
ASTM D471 |
| Water Vapor Permeability max. per-mils | 2.0 | ASTM E96 |
| Resistance to Outdoor (Ultraviolet) Weathering Xenon-Arrc. 4000 hours exposure, 80°C black Panel temperature |
No Cracks No Cracks |
ASTM G26 |
